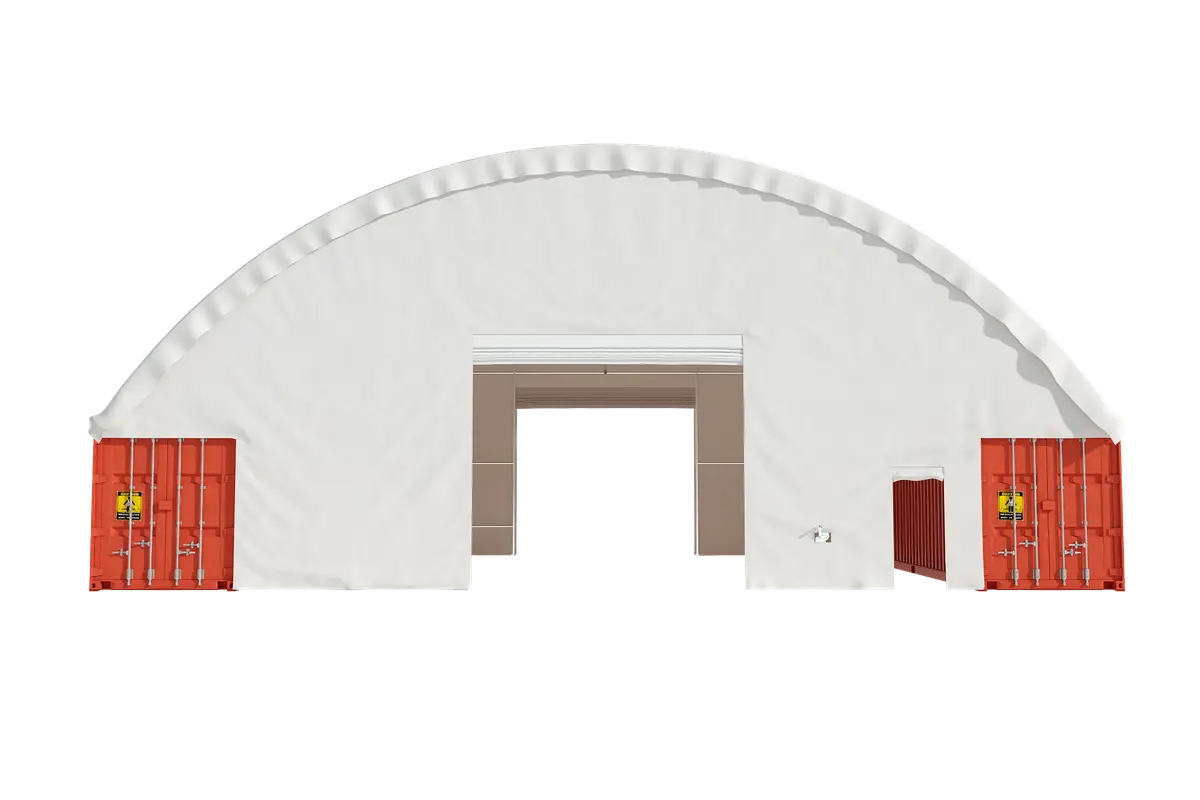

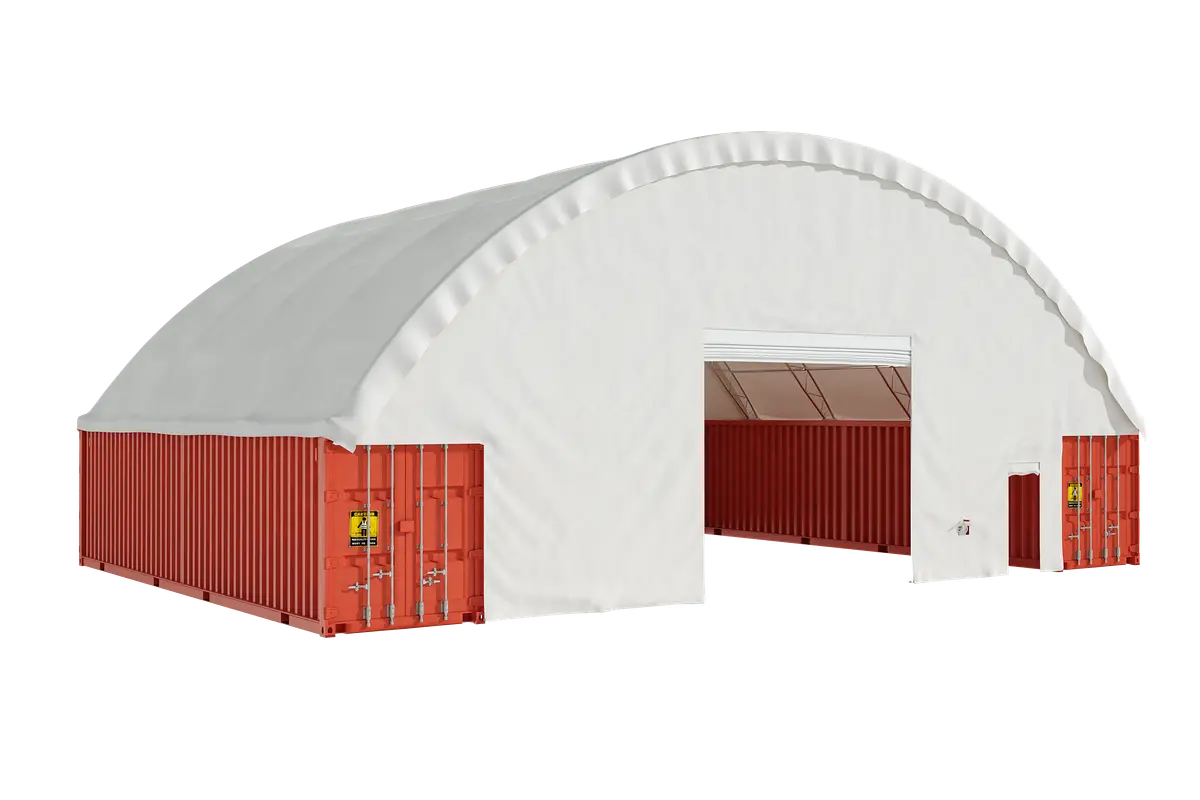

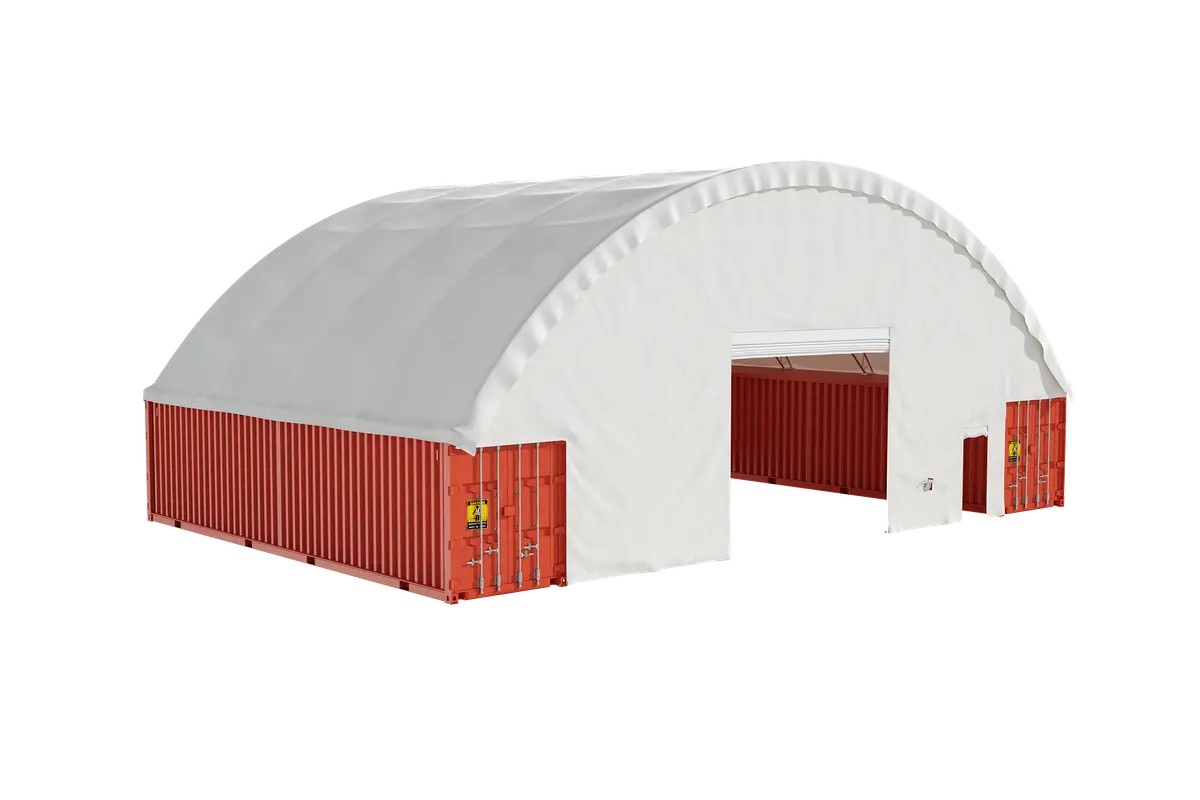

EMC Container Shelter 60'x40'x20' (610g PVC) Double Trussed

Features

• For large equipment, materials and vehicle storage; adaptable to any kind of covered outdoor needs
•  Heavy duty PVC fabric cover: Fire retardant, Leak proof, UV Protected​
•  For large equipment, materials and vehicle storage; adaptable to any kind of covered outdoor needs
• Commercial grade, 3-layer galvanized steel frame structure is long lasting, much higher corrosion protection than the traditional single layer of zinc​

Specifications

• Overall Size: W60’×L40’×H20’
• Shape: Double Truss / Dome Ceiling
• Cover: 22oz(610GSM) PVC Fabric
• Arch Tube: 76*2.0mm
• Purlin Tube: 60*1.5mm
• Truss Spacing: 10’ (3m)
• Truss Quantity: 5 units
• Large Base Plates: 10 units
• Base plates need to be welded on the Containers.

Packing Details:

• Box 1: 115″(L)*43″(W)*43″(H)
• Box 2: 115″(L)*43″(W)*43″(H)
• Box 3: 134″(L)*43″(W)*43″(H)
• Package weight:
• Box 1: 1816 lbs
• Box 2: 1688 lbs
• Box 3: 2036 lbs

Recommended Foundations:

• Concrete spread footings/padding
• Poured in place concrete walls
• Precast concrete walls
• Lock blocks
• Sea Containers
