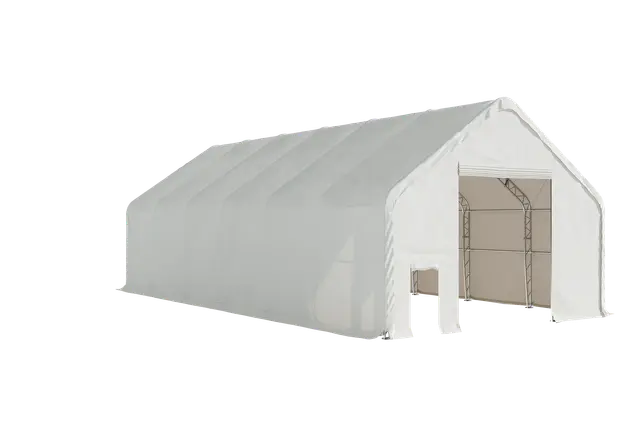

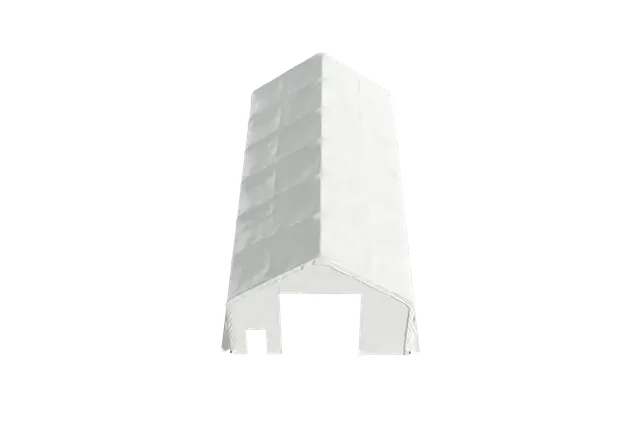

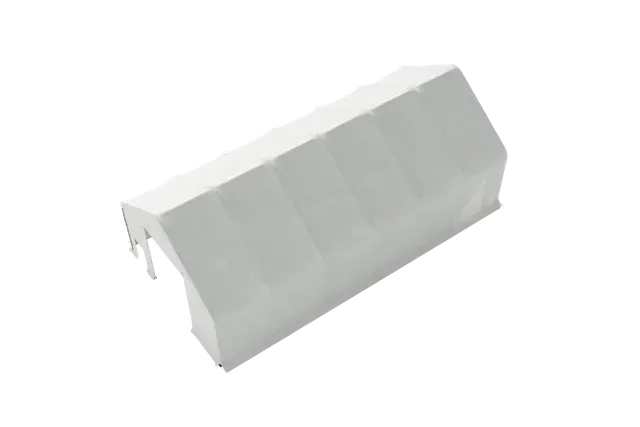

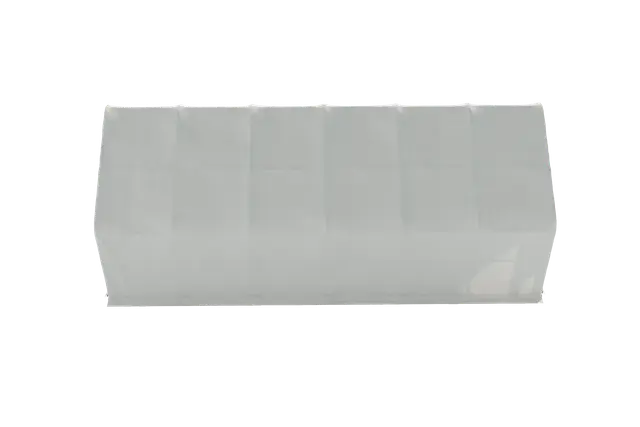

EMC Double Trussed Storage Shelter - 30' Wide x 60' Length x 22' Height

Introducing our Double Truss Storage Shelter, a sturdy and spacious solution for your storage needs. With its double-truss design, this shelter offers superior strength and durability. Its ample space provides room for equipment, vehicles, or supplies. Weather-resistant & easy to assemble, it's perfect for safeguarding your assets year-round.

• Frame Work: Straight Wall Peak Double Truss with hot-dipped galvanized steel.
• Fabric Cover: Fire retardant, Water-resistant, UV protection.
• Shelter Width: 30FT
• Shelter Length: 60FT
• Shelter Height: 22FT
• Shape: Peak / Double Truss
• Cover: 22oz(610GSM) PVC
• 2 Front & Back winch / man doors on both ends
• Winch Door opening dimension: W 4m x H 4.8m
• Winch Door clearance dimension: W 4m x H 4.3m
• Man Door dimension: W 1m x H 1.9m
• Eave height: 3.77m
• Number of trusses: 7
• Approximate truss spacing: 10FT (3.05m)
• Number of large anchor plates: 14
• Ventilation windows on both ends

• Box 1: 110’ ×43’ ×29’ - 1933 lbs
• Box 2: 124’ ×43’ ×49’ - 2838 lbs

• Concrete spread footings/padding
• Poured in place concrete walls
• Precast concrete walls
• Lock blocks
• Sea Containers
