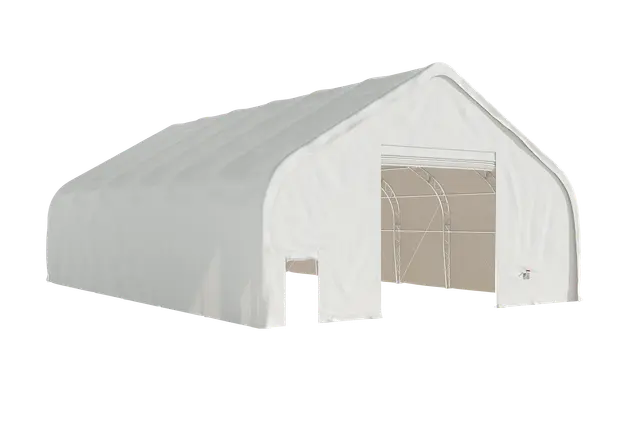

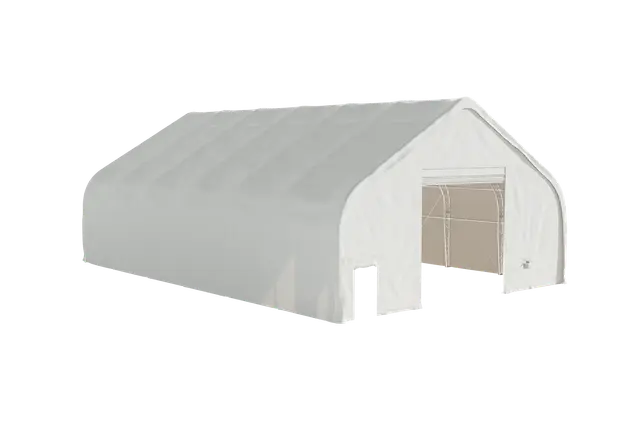

EMC Double Trussed Storage Shelter - 40' Wide x 60' Length x 24' Height

SKU: EMC_SS4060024DP

EMC Double Trussed Storage Shelter - 40' Wide x 60' Length x 24' Height
IN STOCK READY TO GO
$21,700.00 - $21,700.00
$21,700.00
$21,700.00 - $21,700.00
$21,700.00
Quantity
1 800 468 9058
Description

The Container Shelter, featuring dimensions of W40' x L60' x H24', integrates a double truss framework for enhanced strength & stability. This spacious shelter is ideal for safeguarding equipment, machinery, or goods in industrial, agricultural, or commercial settings. Its durable construction ensures long-lasting protection against the elements, making it a reliable storage solution.

Specifications
  • Frame Work: Straight Wall Peak Double Truss with hot-dipped galvanized steel.
  • Fabric Cover: Fire retardant, Water-resistant, UV protection.
  • Shelter Width: 40FT
  • Shelter Length: 60FT
  • Shelter Height: 24FT
  • Shape: Peak / Double Truss
  • Cover: 22oz(610GSM) PVC

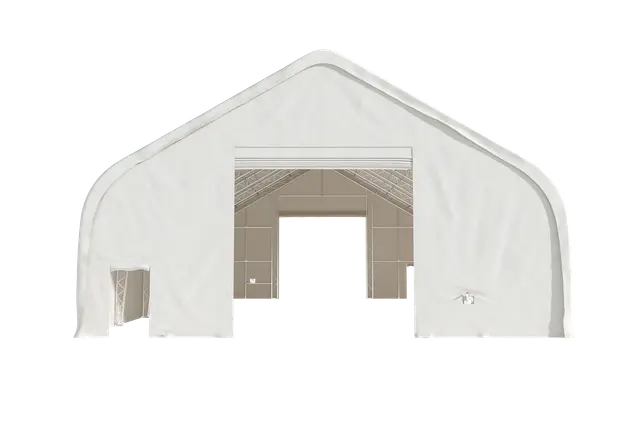

  • 2 Front & Back winch / man doors on both ends
  • Winch Door opening dimension: W 4.6m x H 5.3m
  • Winch Door clearance dimension: W 4m x H 4.8m
  • Man Door dimension: W 1m x H 1.9m
  • Eave height: 3.87m
  • Number of trusses: 7
  • Approximate truss spacing: 10FT (3.05m)
  • Number of large anchor plates: 14
  • Ventilation windows on both ends

Recommended Foundations

  • Concrete spread footings/padding
  • Poured in place concrete walls
  • Precast concrete walls
  • Lock blocks
  • Sea Containers
Shipping Info
  • Box 1: 107″(L)*43″(W)*22″(H) - 1311 lbs
  • Box 2: 107″(L)*43″(W)*49″(H) - 1776 lbs
  • Box 3: 124″(L)×43″(W)×49″(H) - 3196 lbs
